Single track multi-track anti-collision guardrail (Single-track and multi-track anti-collision guardrail)
Brief description
The flexible combination of the anti-collision guardrail system can be freely assembled according to the protection requirements to form a continuous protective belt and provide all-round safety protection.
elaborate
The single-track multi-track anti-collision guardrail consists of multiple independent guardrail units connected by tracks, allowing flexible assembly according to the actual protection length and area shape. Whether it is a straight or curved protection zone, it can be perfectly adapted. Its high-strength guardrail structure can withstand significant impact forces, effectively preventing vehicles from surging out. It is widely used in road barriers, large parking lot protection, factory boundary protection, and other scenarios, providing reliable safety protection for various venues.
Product Parameter
|
Parameter items |
Parameter details |
|
Main material |
It is specially developed with imported high molecular plastic raw materials, which has strong weather resistance and is not easy to age; the color is natural, and the anti-uv performance meets ISO4892-3 standard; it has strong chemical resistance and will not be corroded, and the chemical activity is very low. |
|
lampstand |
Metal, rubber and other materials are combined and assembled. The exposed metal is treated with black spray coating. The neutral salt spray test lasts for 500 hours and does not rust. |
|
Ground connection |
The inverted conical chemical anchor bolt is fixed, the surface is dacro, and it does not rust after 1000 hours of neutral salt spray test; stainless steel 304 with a cover nut is fastened. |
|
Height: 1150mm for three cross beams / 800mm for double cross beams / 500mm for |
|
size |
double cross beams / 450mm for single cross beams / 280mm for single cross beams Length: 1500mm |
|
Column specifications |
The outer diameter is 90 and the wall thickness is 10mm |
|
Crossbar specifications |
The outer diameter of the flat tube is 35*80mm and the round tube is 60mm with a wall thickness of 10mm |
|
It absorbs impact |
It can withstand 2-3 tons of impact force, and the buffer distance can reach 0.5-1 meters, effectively attenuating the collision energy. |
other

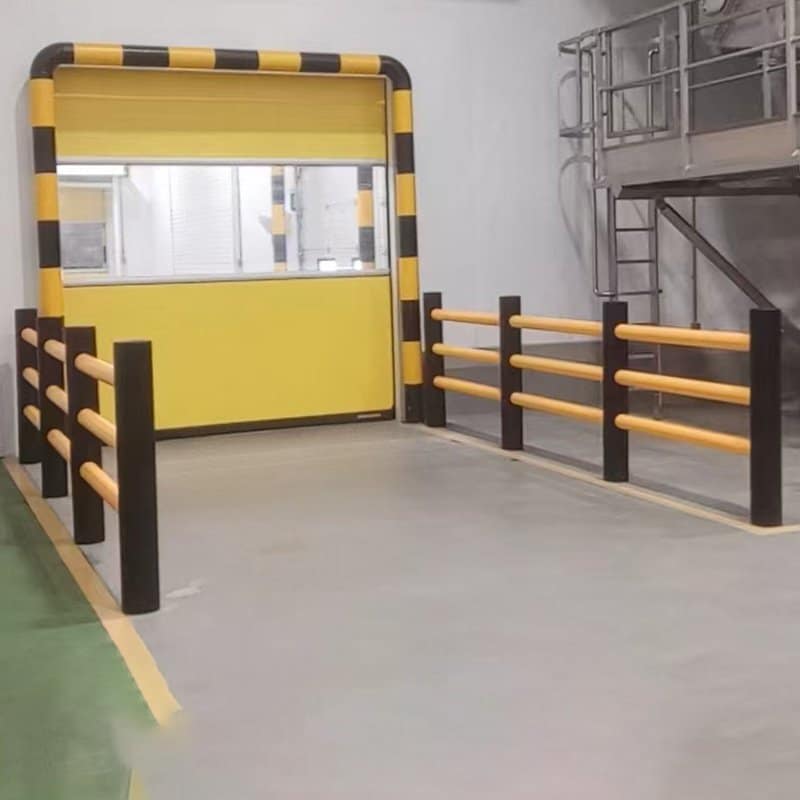

It is suitable for large parking lots, industrial parks, urban roads and other places. It provides professional design and installation services, and can customize protection plans according to customer needs. The warranty period is 1 year, lifetime maintenance, regular equipment inspection and maintenance.
