With hydraulic drive as the core, it can realize smooth and efficient lifting and lowering, flexibly adapt to the height of various truck compartments, and facilitate the rapid loading and unloading of goods.

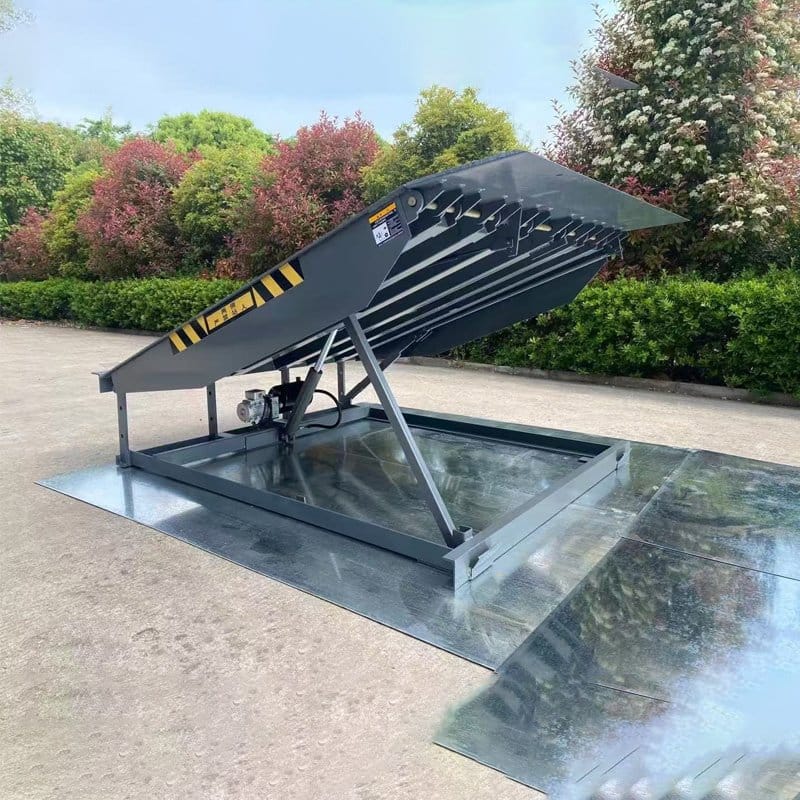

The hydraulic loading and unloading platform employs mature hydraulic transmission technology, equipped with high-power hydraulic pumps and high-strength hydraulic cylinders, capable of easily supporting cargo weights of 10 to 15 tons. The platform’s lifting process is smooth and stable, allowing for height adjustments of 300 to 800mm within 20 to 30 seconds, precisely aligning with trucks of various heights. Its robust platform structure and anti-slip surface design ensure the safety of both cargo and personnel during loading and unloading, making it an ideal choice for cargo transfer and handling.
1. Structural performance
high-strength material:
The countertop and frame are made of high strength anti-slip steel plate (panel: 8mm Baosteel patterned steel plate; tongue plate: 16mm thick Q345 steel plate, length> 400mm).
The bottom of the main table is reinforced with 140 x 45 x 4 I-beam steel, which improves the bearing capacity by two times compared with the traditional channel steel.
Openable hinge: the welding area is increased by 300%, the bearing force is increased by 4 times, and it is easier to maintain.
Independent leg structure: enhance stability and ensure operation safety.
2. Hydraulic system performance
Fully electric control: driven by imported brand hydraulic pump station, equipped with safety lock valve, speed valve and inverted hydraulic cylinder design to reduce the risk of oil leakage and sand and dust intrusion.
Intelligent protection:
Unbalanced automatic lock (stop after 5mm down, button can be restored).
It will stop automatically when the obstacle is encountered and resume operation after the obstacle is removed.
3. Safety performance
Foot guard plate: full working range foot guard plate (with yellow and black warning stripes) to prevent foot injury.
Night self-locking device: prevent unauthorized operation.
Penetrating safety support rod: maintain a stable support surface during maintenance.
Impact protection design: layered impact protection rubber blocks to effectively buffer the impact.
4. Operation performance
Human-machine interface: CPU integrated control system, real-time display of running status, times and fault codes.
Single key control: one button lift, simple and reliable operation.
| project | Parameter/Description |
| model | DL mould |
| weight capacity | Static load: 15.8 tons; dynamic load: 8 tons |
| adjustable range | Up: +350mm; down: -300mm |
| Table size | Excavation pit size: 2000mm (wide) ×2000mm (long) ×500mm (high)
Platform size: 1970mm (wide) x 2000mm (long) x 495mm (high) |
| working temperature | -30℃～+50℃ |
| electro-motor | Power: 750-1100W; voltage: 380V/50Hz |
| noise level | ≤ 75 dB (continuous operation) |
| hydraulic pressure system | Swiss Buch hydraulic station; main hydraulic cylinder specification: 35/63mm, stroke about 500mm |
| hydraulic fluid | 32 Great Wall Aviation wear-resistant and pressure resistant hydraulic oi |
| welding procedure | Baosteel high quality steel manufacturing, strict rust removal treatment, spray three times paint (two bottom and one surface) |
| Anti-collision glue | Standard 2 laminated anti-collision rubber (size: 100mm x 200mm x 300mm) |
Product features
1. Durability
The structural parts are treated strictly to be corrosion resistant; the anti-slip design of the table surface is suitable for frequent operation of forklift.

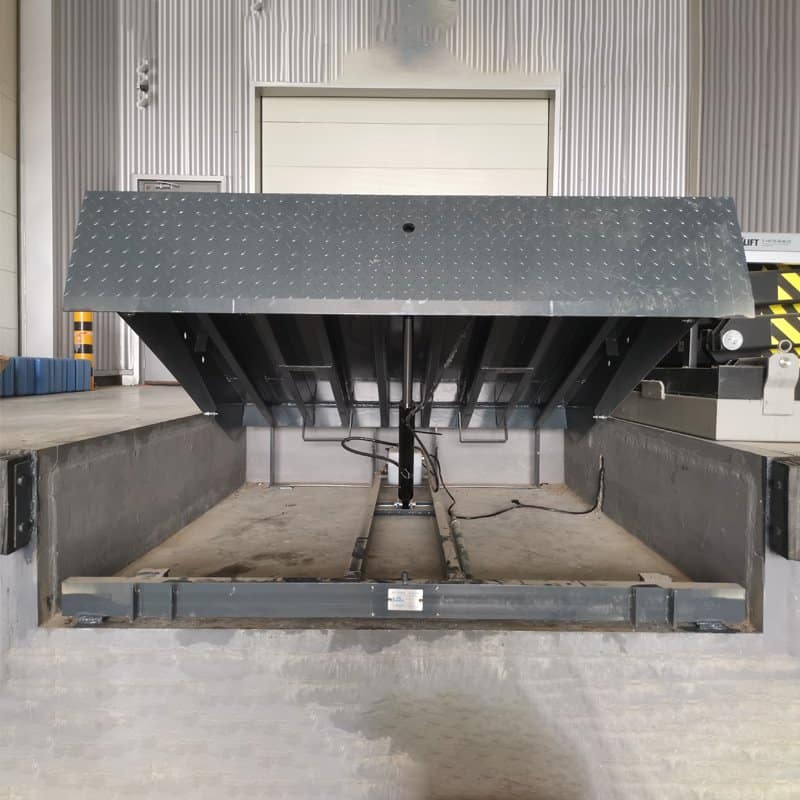

Open base design, easy to clean the foundation pit and equipment maintenance.
2. Security
The smooth transition design avoids the collision between the forklift and the platform; the tongue plate hydraulic locking function improves the operation safety.
The safety support rod and the night self-locking device are guaranteed.
3. Intelligence
Hydraulic system linkage control, support for expansion functions (such as interlocking, remote monitoring).
Fault self-diagnosis function to reduce downtime.
3. Adaptability
The operating temperature range is wide (-30℃~+50℃), suitable for harsh environment.
Color is optional (standard RAL7012 gray, black and blue are optional).
4. Economy
Low maintenance rate design, hydraulic system life is long; free anti-collision glue, reduce subsequent costs.
