Hook truck limiter (Hooked Vertical Restraints)

Brief description

Through the vertical lifting mechanical structure, the rear of the truck is strongly locked to ensure the whole process of loading and unloading safely.

elaborate

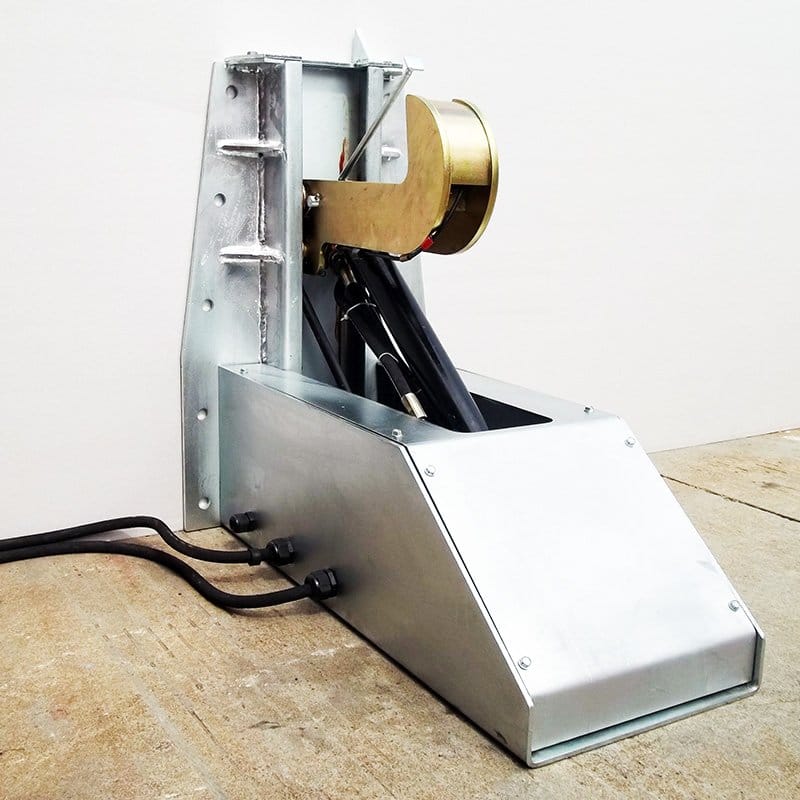

The truck limiter, designed as a safety protection device for large factory logistics transportation and loading/unloading platforms, features a vertical lifting lock hook driven by a hydraulic cylinder. The floating range is determined by upper and lower limit sensors, allowing it to move up and down with the truck’s bumper to achieve precise engagement and rigid fixation. This effectively prevents safety accidents caused by truck rolling during loading/unloading, forklift falling, or driver errors.

Product Parameter

Parameter name	parameter values
The bumper range	Height 250mm to 680mm adjustable, thickness: 100mm to 320mm, suitable for different types of truck bumper, contact surface is designed with anti-slip teeth to enhance friction.
Fault self-diagnosis	It can monitor 12 parameters such as hydraulic pressure and motor current in real time
Extreme operating conditions are adapted	-40℃ to +80℃ wide temperature range operation, certification
energy conservation and environment protection	AStandby power consumption <50W, action cycle energy consumption 0.2kWh/ times
Compatible models	Trucks with a total weight of 3.5-40 tons
working pressure	16MPa hydraulic system
levels of protection	The main body of the lock hook is IP67 and the control unit is IP65
approval standards	Certified by CE mechanical directive.

other

Vertical lock: the hydraulic drive hook is vertically raised and lowered, accurately embedded in the bottom of the truck bumper, forming a rigid connection, which can carry more than 15 tons of tensile strength and prevent the front and rear displacement of the truck.

Anti-skid protection: when the truck is parked on the loading and unloading platform, the vehicle position is locked immediately to eliminate the risk of skidding caused by ground slope and brake failure.

Misoperation interception: It is linked with the loading and unloading signal system to ensure that the lock hook remains locked when the goods are not loaded and unloading is not completed and personnel are not evacuated, so as to prevent the driver from touching the throttle prematurely and leaving the vehicle.

Status visualization: equipped with red and green warning lights and buzzers, the lock hook status (locked/release) is displayed in real time, and the data is synchronized with the control system through signals.

Triple protection structure: the base is welded with 10mm thick steel plate frame, the lock hook assembly is hardened alloy steel (hardness HRC55-60), and the guide column is equipped with self-lubricating copper sleeve to ensure more than 200,000 maintenance-free cycles.

Intelligent control system: The IP65 protection level control box integrates PLC logic controller, supports manual/automatic dual mode switching, interlocks with doors and platforms, and is compatible with various industrial fieldbus protocols.

Rapid locking: the response speed is 60% higher than that of traditional limiters.
