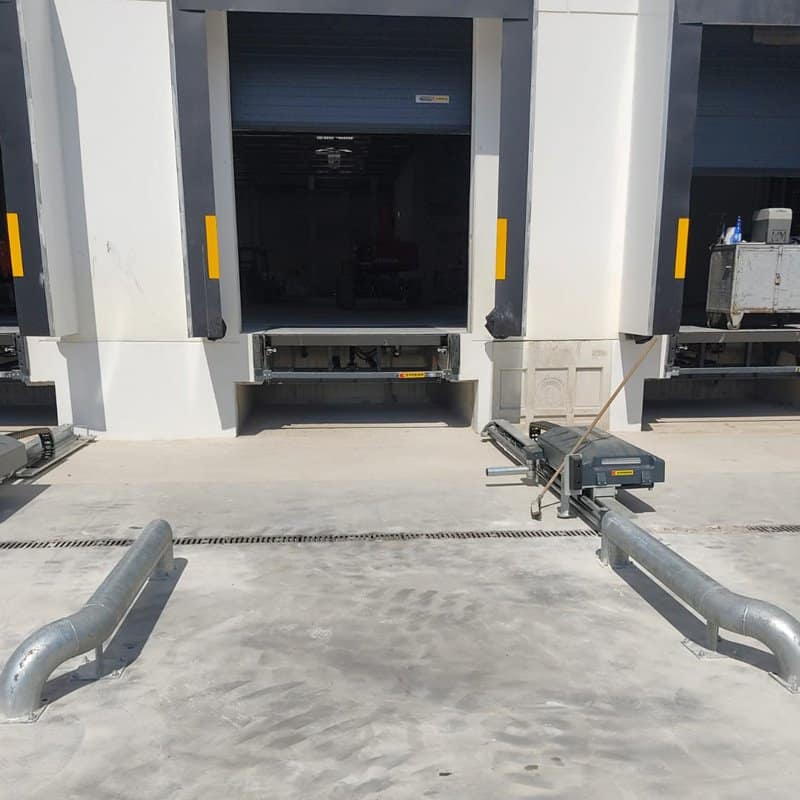

Using automation technology, the truck wheels can be fixed quickly and accurately, which significantly improves the loading and unloading efficiency and safety of medium and large trucks.

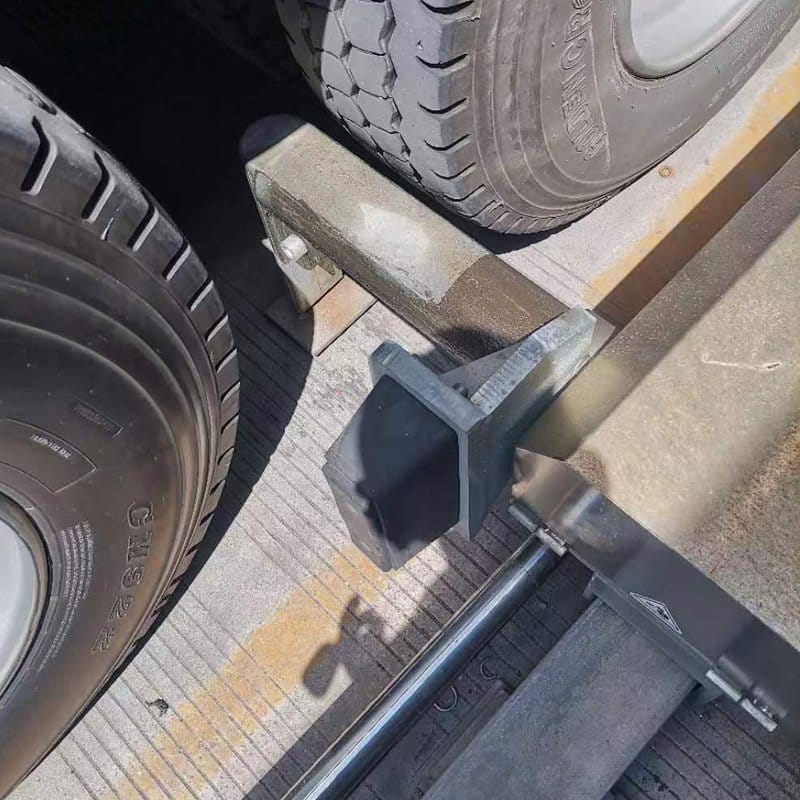

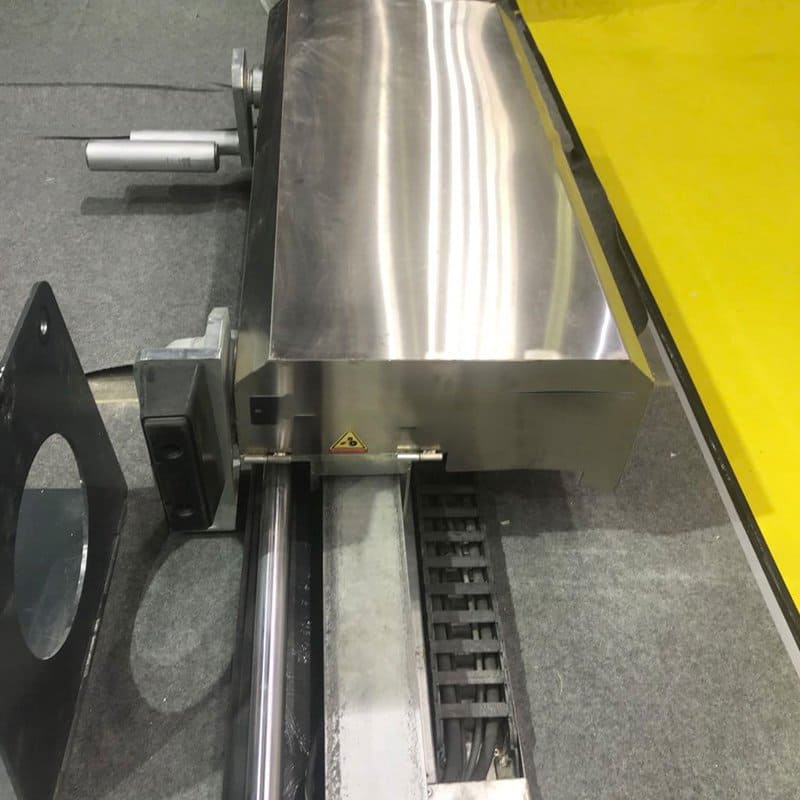

The automatic trolley-mounted trolley limiter is equipped with advanced sensors and intelligent control systems. When the trolley enters a designated area, the system automatically identifies and activates, completing precise locking of the trolley wheels in just a few seconds. Its powerful limiting force and stable operational performance effectively meet the demands of busy loading and unloading operations, reducing labor costs while minimizing safety risks caused by human errors. It serves as an efficient safety guarantee for modern logistics loading and unloading
Contains components
| project | parameter |
| source | 380V three-phase AC, neutral point grounded |
| control voltage | 24V DC, with automatic protection function |
| hydraulic pressure | -Motor power: 1.5 KW (220/380 V, 1500 RPM) -Pump capacity: 9.8 cc, tank capacity 12 L |
| system | -Hydraulic oil type: HV 46 SAE 20 (low temperature applicable) |
| Mechanical parameters | -Lock height: 370 mm
-Size: 4500 x 710 mm (475 mm height, without base) -Weight: 700 kg |
| levels of protection | -Control system: IP65 |
| Applicable vehicle type | Trucks with a total weight of 3.5 to 40 tons |
| Compliance certification | -Mechanical Directive: 2006/42/CE
-Electrical safety: EN 60204-1 (2009) -Hydraulic safety: EN 282 (1996) -FEM standard: EN 11.005 (2015) Level 3 pull-out force |
operating process:
Truck docking: After the vehicle is parked on the unloading platform, the system automatically identifies the vehicle position through the tire detection sensor.
Lockdown phase:
The operator presses the “lock” button, the red light is on, and the door and unloading platform cannot be operated.
The lock automatically activates the hydraulic system to lock the truck’s tires.
After the lock is completed, the green light will be on, and the door and unloading platform can operate normally. The loading and unloading operation begins.
Release phase:
After the loading is completed, the operator closes the door and resets the unloading platform.
Press the “release” button, the green light turns to red, the lock automatically unlocks, and the vehicle can safely leave.
Safety interlock mechanism:
Prevention of misoperation:
The door and unloading platform are only allowed to operate after the lock is fully locked (interlock condition A).
If the door is not closed, the system prohibits the release of the vehicle (interlock condition B).
Brake failure protection:
Even if the vehicle brake fails, the lock can still detect the state of the vehicle and prevent accidental movement.
signal system:
Dual color warning light:
Green light: allows the driver to stop or leave.
Red light: The driver is prohibited from operating, and the lock is in effect.
LED status light: for the operator to monitor the lock/release status in real time.
product superiority
automatic mode of operation:
Tire testing and locking are fully automated to reduce human intervention.
Supports “summer/winter” mode switching to adapt to different ambient temperatures.
Multiple security design:
Emergency release key switch (control cabinet) to ensure emergency handling.
The sensor plug is fast connected for easy maintenance and troubleshooting.
energy-efficient:
The hydraulic system is optimized for low energy consumption and fast response.
LED lighting with adjustable micro light sensor is energy saving and safe.
Accredited certification:
Through ISO 9001 quality management system certification, the production process is strictly controlled.
The 2015 Innovation Award winner has been recognized by the industry for its technology maturity and security.
