Airbag loading and unloading platform (Pneumatic dock leveler)

Brief description

Using the principle of air bag inflation, it can realize low noise and high buffer platform lifting, protect goods and equipment carefully, and complete loading and unloading tasks efficiently.

elaborate

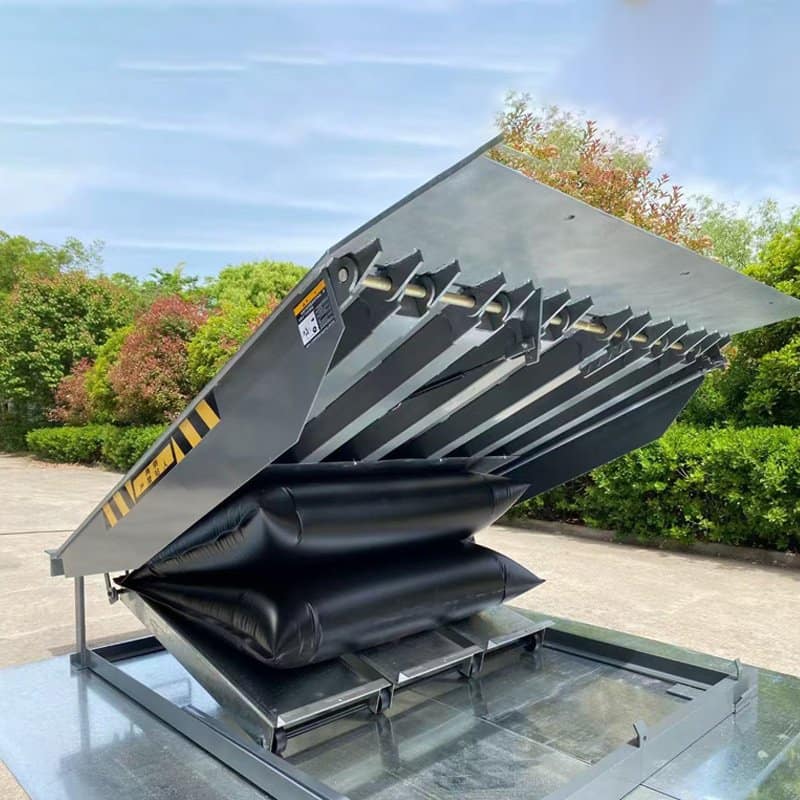

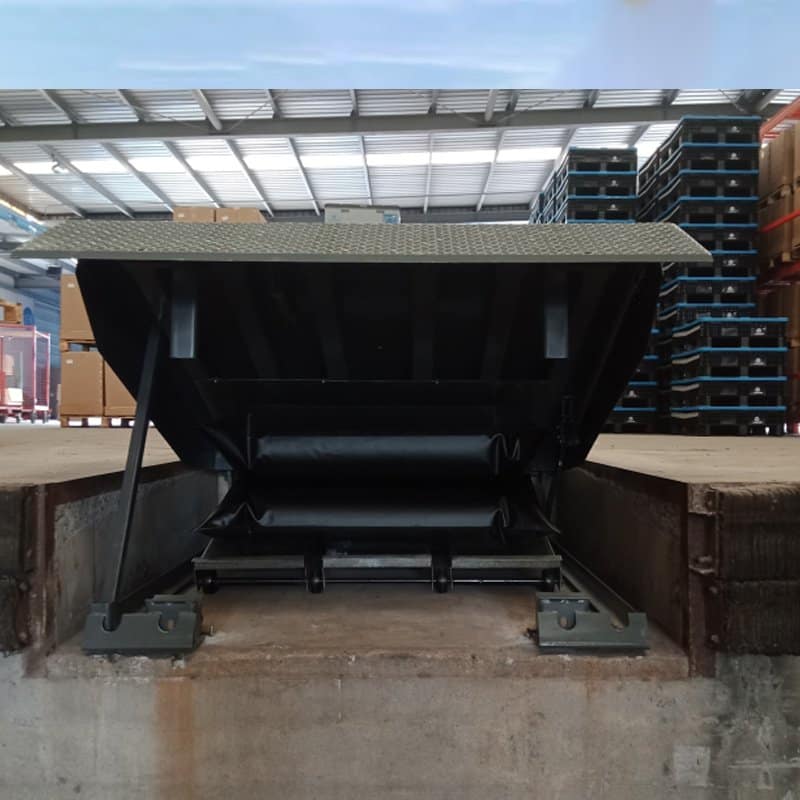

The innovative airbag loading and unloading platform uses airbags as the power source for lifting and lowering. When the airbags are inflated, they push the platform up steadily; when deflated, the platform slowly descends. Holding down the control button, a specially designed fan inflates the airbags, causing them to expand and lift the adjustment plate. Once the adjustment plate reaches its highest position, a patented hinged system automatically deploys the hinges. Release the control button, and the adjustment plate descends under its own weight, allowing the hinges to rest on the truck bed. The forklift can then drive directly into the cargo area through the adjustable plate of the loading and unloading platform to load or unload goods.

product property

1. Structural performance
high-strength material:
The countertop and frame are made of high strength anti-slip steel plate (panel: 8mm Baosteel patterned steel plate; tongue plate: 16mm thick Q345 steel plate, length> 400mm).
The bottom of the main table is reinforced with 140 x 45 x 4 I-beam steel, which improves the bearing capacity by two times compared with the traditional channel steel.
Openable hinge: the welding area is increased by 300%, the bearing force is increased by 4 times, and it is easier to maintain.
Independent leg structure: enhance stability and ensure operation safety.
2. Hydraulic system performance
Fully electric control: driven by imported brand hydraulic pump station, equipped with safety lock valve, speed valve and inverted hydraulic cylinder design to reduce the risk of oil leakage and sand and dust intrusion.
Intelligent protection:
Unbalanced automatic lock (stop after 5mm down, button can be restored).
It will stop automatically when the obstacle is encountered and resume operation after the obstacle is removed.
3. Safety performance
Foot guard plate: full working range foot guard plate (with yellow and black warning stripes) to prevent foot injury.
Night self-locking device: prevent unauthorized operation.
Penetrating safety support rod: maintain a stable support surface during maintenance.
Impact protection design: layered impact protection rubber blocks to effectively buffer the impact.
4. Operation performance
Human-machine interface: CPU integrated control system, real-time display of running status, times and fault codes.
Single key control: one button lift, simple and reliable operation.

Product Parameter

other

It is widely used in food, electronics, medicine and other industries with high requirements for loading and unloading environment. It provides customized installation solutions, a one-year warranty period, lifetime maintenance, equipped with professional after-sales team, timely response to customer needs, and solve usage problems.
